D3428-5002-AR
3M
D3428-5002-AR
3M

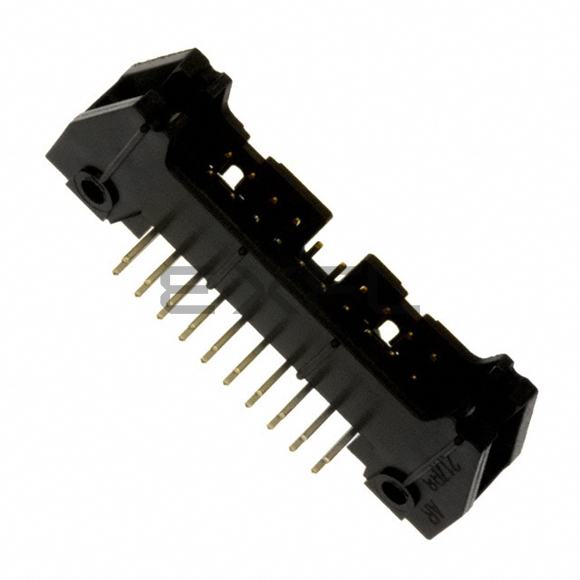

CONN HEADER R/A 20POS 2.54MM
Reference Price (USD)
1+
$2.66000
500+
$2.6334
1000+
$2.6068
1500+
$2.5802
2000+
$2.5536
2500+
$2.527
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
D3428-5002-AR
$2.66
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.112" (2.84mm)
- Overall Contact Length: -
- Insulation Height: 0.340" (8.64mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.75A
- Voltage Rating: -
