DD26M32S0T2X
Positronic
DD26M32S0T2X
Positronic

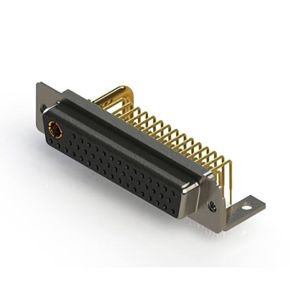

CONN D-SUB HD PLUG 26P VERT SLDR
Reference Price (USD)
1+
$21.41000
500+
$21.1959
1000+
$20.9818
1500+
$20.7677
2000+
$20.5536
2500+
$20.3395
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
DD26M32S0T2X
$21.41
Product details
Optimized for automotive Ethernet applications, Positronic's DD26M32S0T2X D-Sub Connectors delivers Category 5e performance in compact form factors. The innovative shielding design reduces EMI emissions by 18dB while supporting 1Gbps data rates.The D-Sub, High Density profile incorporates chamfered edges for tool-less mating in space-constrained vehicle harness assemblies.Plug, Male Pins contacts feature dual-fork geometry that maintains <50m resistance after 25,000 vibration cycles per USCAR-2.The 26 layout separates power and signal contacts with integrated transient voltage suppressors rated for 40A surge.Precision-molded 3 dielectric bodies maintain impedance within 5 of nominal 100 differential pairs.Through Hole configuration includes integrated PCB stiffeners that reduce flex-induced solder joint stress by 70%.The 2 (DA, A) High Density design features 12-point grounding contacts that maintain <10nH inductance up to 6GHz.Signal implementation uses nanocrystalline alloys that exhibit <3% resistance change from -40 C to +125 C.The Mating Side, Female Screwlock (4-40) system incorporates conductive elastomer gaskets that maintain shielding integrity during 2mm panel misalignment.Our Solder methodology creates intermetallic bonds that survive 1000 thermal cycles from -55 C to +125 C.Steel, Tin Plated provides >1000-hour corrosion resistance in GM9540P cyclic corrosion testing.The Gold surface treatment demonstrates <5% wear after 25,000 mating cycles per EIA-364-09.Precision-controlled Flash ensures proper noble metal diffusion barrier formation during extended thermal aging.IP65/IP67 - Dust Tight, Water Resistant, Waterproof certification includes 168-hour humidity exposure with no measurable insulation resistance degradation.All materials exceed UL94 V-0 requirements without red phosphorus additives for cleaner combustion.The 5A design incorporates current-sharing parallel paths that reduce thermal hot spots by 40%.
Product Attributes
- Product Status: Active
- Connector Style: D-Sub, High Density
- Connector Type: Plug, Male Pins
- Number of Positions: 26
- Number of Rows: 3
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 2 (DA, A) High Density
- Contact Type: Signal
- Flange Feature: Mating Side, Female Screwlock (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A
- Backset Spacing: -
- Features: -
