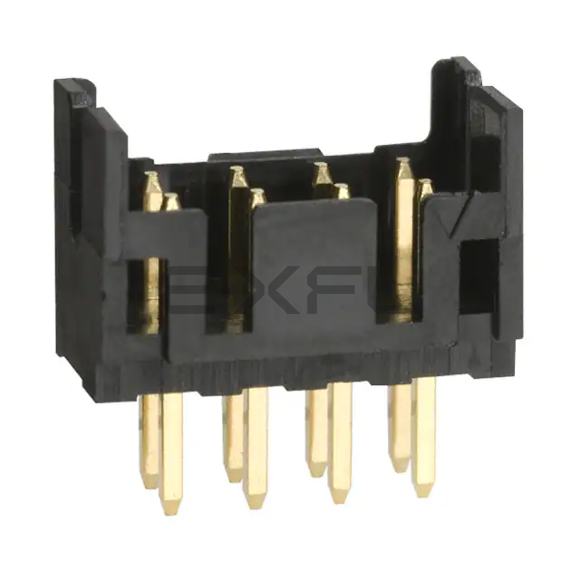

DF11-8DP-2DSA(01)

Product details

Product Attributes

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.079" (2.00mm)
• Number of Positions: 8
• Number of Rows: 2
• Row Spacing - Mating: 0.079" (2.00mm)
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Detent Lock
• Contact Length - Mating: 0.118" (3.00mm)
• Contact Length - Post: 0.118" (3.00mm)
• Overall Contact Length: 0.299" (7.60mm)
• Insulation Height: 0.260" (6.60mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 8.00µin (0.203µm)
• Contact Finish - Post: -
• Contact Material: Brass
• Insulation Material: Polyamide (PA), Nylon
• Features: -
• Operating Temperature: -30°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 2A
• Voltage Rating: 250V
