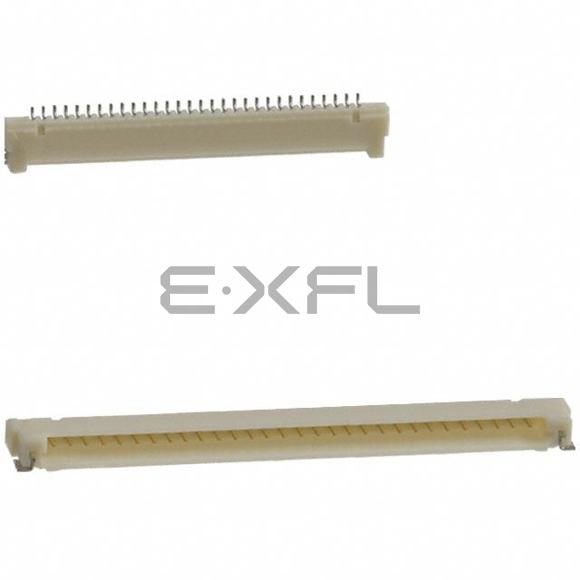

DF14A-30P-1.25H(26)

Product details

Product Attributes

• Product Status: Obsolete
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.049" (1.25mm)
• Number of Positions: 30
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Surface Mount, Right Angle
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.086" (2.20mm)
• Contact Length - Post: -
• Overall Contact Length: -
• Insulation Height: 0.098" (2.50mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin-Copper
• Contact Finish Thickness - Mating: 39.4µin (1.00µm)
• Contact Finish - Post: -
• Contact Material: Brass
• Insulation Material: Polyamide (PA), Nylon
• Features: Solder Retention
• Operating Temperature: -35°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Beige
• Current Rating (Amps): 1A
• Voltage Rating: 150V
