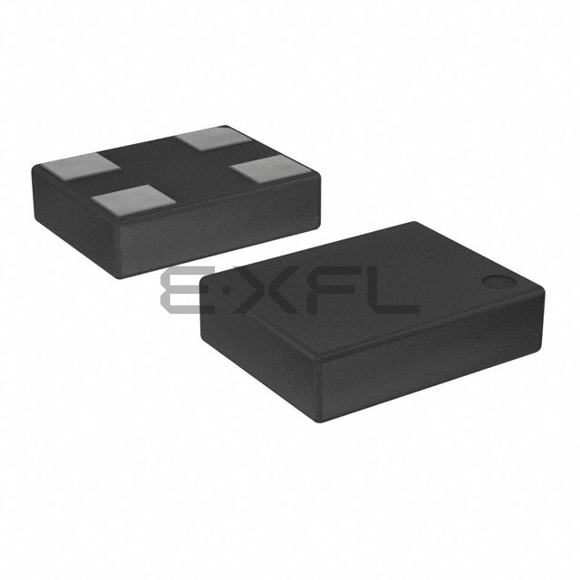

DSC6101CI2A-012.0000
Microchip Technology
DSC6101CI2A-012.0000
Microchip Technology
MEMS OSC XO 12.0000MHZ CMOS SMD
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
DSC6101CI2A-012.0000
$0.00
Product details
Microchip Technology's DSC6101CI2A-012.0000 revolutionizes Oscillators performance, specifically engineered for automotive-grade clock distribution networks. This MEMS-based solution delivers unmatched reliability for safety-critical vehicle systems.The MEMS design incorporates shock-resistant MEMS structures that survive 50,000g mechanical stress, exceeding automotive crash standards.This XO (Standard) implements ASIL-D compliant fault detection with <1 s failover time, critical for autonomous driving sensor fusion systems.Operating at 12 MHz with <0.5ps cycle-to-cycle jitter, the oscillator meets stringent requirements for LiDAR time-of-flight measurement.Enable/Disable capability supports wake-on-event timing for energy-efficient telematics control units.The CMOS stage features short-circuit protection and load-dump resilience for robust operation in 48V mild hybrid electrical systems.With 1.8V ~ 3.3V operating range, the device maintains timing accuracy during cold-crank conditions down to 3V.Achieving ±25ppm stability over 15-year vehicle lifespan, the oscillator eliminates the need for periodic calibration in ADAS cameras.Rated for -40°C ~ 85°C operation, the device maintains lock during rapid temperature transitions from engine heat soak.The 3mA (Typ) ultra-low current consumption enables always-on operation in keyless entry systems without draining the battery.Compliant with AEC-Q100 standards, the device undergoes extended AEC-Q100 Grade 0 qualification for use in direct engine-mounted applications.Surface Mount configuration incorporates conductive elastomer gaskets for EMI shielding in electric vehicle powertrains.The 4-SMD, No Lead package features conformal coating compatibility for under-hood installation in combustion engines.With 0.126" L x 0.098" W (3.20mm x 2.50mm) compact footprint, the oscillator fits within space-constrained infotainment head units.The 0.035" (0.89mm) low profile enables installation behind instrument clusters without interfering with airbag deployment.
Product Attributes
- Product Status: Obsolete
- Base Resonator: MEMS
- Type: XO (Standard)
- Frequency: 12 MHz
- Function: Enable/Disable
- Output: CMOS
- Voltage - Supply: 1.8V ~ 3.3V
- Frequency Stability: ±25ppm
- Absolute Pull Range (APR): -
- Operating Temperature: -40°C ~ 85°C
- Spread Spectrum Bandwidth: -
- Current - Supply (Max): 3mA (Typ)
- Ratings: AEC-Q100
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, No Lead
- Size / Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max): 0.035" (0.89mm)
