FDA2-25489QBLT4D-L
Qualtek
FDA2-25489QBLT4D-L
Qualtek

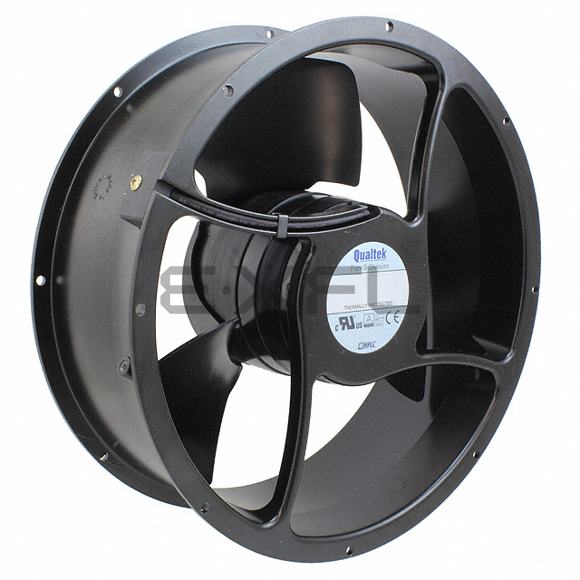

FAN AXIAL 254X89MM 230VAC TERM
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
FDA2-25489QBLT4D-L
$0.00
Product details
The FDA2-25489QBLT4D-L from Qualtek sets new standards in AC Fans technology for aerospace thermal management. This premium fan solution is designed to meet the rigorous demands of avionics cooling and cabin air circulation systems.Operating at 230VAC, the fan features military-grade power conditioning for stable performance in aircraft electrical systems with variable voltage.The Round - 254mm Dia form factor is optimized for standard ARINC 600 rack mounting in avionics bays with minimal weight penalty.With 89.00mm ultra-thin profile, the fan enables high-density installations in flight control computers and navigation systems.Delivering 440.0 CFM (12.32m³/min) with precision, this unit maintains critical temperature thresholds for radar and flight instrument cooling at altitude.The 0.240 in H2O (59.8 Pa) performance ensures adequate airflow through EMI-shielded enclosures in military avionics applications.The Ball mechanism is specially lubricated for reliable operation at -55 C to +85 C in unmanned aerial vehicles.As a Tubeaxial configuration, it provides laminar airflow essential for cooling sensitive satellite communication equipment.At 52.0dB(A) sound level, the fan meets stringent acoustic requirements for business jet cabin environmental systems.The 32.00W low-power design minimizes load on aircraft auxiliary power units.1650 RPM speed is automatically adjusted based on flight phase through ARINC 429 interface in modern glass cockpits.2 Terminals options include MIL-DTL-38999 connectors for secure avionics installations.IP56M - Dust Protected, Water Resistant rating ensures operation in dusty runway conditions and high humidity environments.Rated for -4 ~ 158°F (-20 ~ 70°C) range, the fan performs reliably from ground operations to 50,000 ft altitude.CE, cURus, TUV certifications include DO-160G compliance for environmental testing.The lightweight 6 lbs (2.7 kg) aluminum construction meets strict aircraft weight budget requirements.
Product Attributes
- Product Status: Active
- Voltage - Rated: 230VAC
- Size / Dimension: Round - 254mm Dia
- Width: 89.00mm
- Air Flow: 440.0 CFM (12.32m³/min)
- Static Pressure: 0.240 in H2O (59.8 Pa)
- Bearing Type: Ball
- Fan Type: Tubeaxial
- Features: -
- Noise: 52.0dB(A)
- Power (Watts): 32.00W
- RPM: 1650 RPM
- Termination: 2 Terminals
- Ingress Protection: IP56M - Dust Protected, Water Resistant
- Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
- Approval Agency: CE, cURus, TUV
- Weight: 6 lbs (2.7 kg)
