FH19C-17S-0.5SH(10)
Hirose Electric Co Ltd
FH19C-17S-0.5SH(10)
Hirose Electric Co Ltd

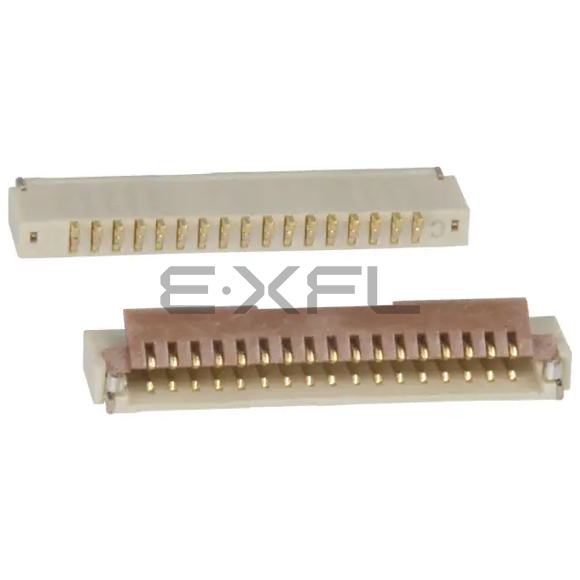

CONN FFC BOTTOM 17POS 0.50MM R/A
Reference Price (USD)
1+
$1.39000
500+
$1.3761
1000+
$1.3622
1500+
$1.3483
2000+
$1.3344
2500+
$1.3205
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
FH19C-17S-0.5SH(10)
$1.39
Product details
Hirose Electric Co Ltd's FH19C-17S-0.5SH(10) delivers breakthrough performance in FFC, FPC (Flat Flexible) Connectors, specifically engineered for next-generation automotive electronics. This AEC-Q200 qualified solution combines automotive-grade reliability with high-speed data transmission capabilities.Supporting FFC, FPC configurations, the connector features vibration-resistant contact design. The automotive-optimized version withstands 40G mechanical shock.The Surface Mount, Right Angle implementation includes solder wicking prevention. The reflow-compatible design survives 3 rework cycles.With Contacts, Bottom architecture, the solution provides 10Gbps signal integrity. The embedded ferrite beads suppress EMI/RFI interference.Offering 17 circuits, the connector integrates power and signal contacts. The hybrid design reduces connector count by 30%.The 0.020" (0.50mm) fine-pitch configuration enables 56G PAM4 signaling. The skew-controlled layout maintains <5ps intra-pair delay.Solder process features automotive-grade solder alloys. The intermetallic control prevents brittle joint formation.Accommodating 0.20mm cables, the connector provides 360 strain relief. The automotive-specific version resists engine compartment fluids.The 0.035" (0.88mm) low-profile design fits behind instrument panels. The crush-resistant housing withstands 500N point loads.The Flip Lock system provides positive engagement in high-vibration environments. The secondary lock confirms proper mating.Tapered interface prevents salt spray penetration. The conformal coated version meets ISO 20653 protection standards.Using Phosphor Bronze alloys, the contacts maintain performance after thermal cycling. The stress-relieved temper resists micro-cracking.The Gold plating system prevents fretting corrosion. The automotive version features 0.76 m gold over 2.5 m nickel.Liquid Crystal Polymer (LCP), Halogen Free compound meets LV214 flame retardancy. The heat-stabilized formulation resists under-hood temperatures.Constructed from Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS), the actuator operates at -40 C without brittleness. The glass-fiber reinforced version withstands door slam vibrations.Solder Retention, Zero Insertion Force (ZIF) include misinsertion prevention. The automotive version incorporates CPA (Connector Position Assurance) features.Rated for 50V in 48V systems, the connector exceeds ISO 16750-2 requirements. The arc-quenching design prevents sustained discharges.Validated for -55°C ~ 85°C in automotive applications. The materials maintain properties after 1000 thermal cycles.Meeting UL94 V-0 standards, the materials produce minimal smoke. The halogen-free version meets VW 60330 requirements.
Product Attributes
- Product Status: Obsolete
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 17
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.20mm
- Height Above Board: 0.035" (0.88mm)
- Locking Feature: Flip Lock
- Cable End Type: Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
- Actuator Material: Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -55°C ~ 85°C
- Material Flammability Rating: UL94 V-0
