FH34SRJ-10S-0.5SH(50)
Hirose Electric Co Ltd
FH34SRJ-10S-0.5SH(50)
Hirose Electric Co Ltd

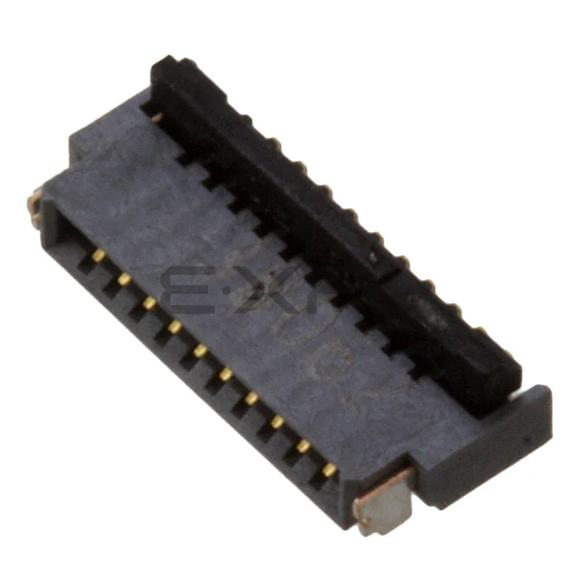

CONN FFC FPC 10POS 0.50MM R/A
Reference Price (USD)
1+
$0.92000
500+
$0.9108
1000+
$0.9016
1500+
$0.8924
2000+
$0.8832
2500+
$0.874
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
FH34SRJ-10S-0.5SH(50)
$0.92
Product details
The FH34SRJ-10S-0.5SH(50) from Hirose Electric Co Ltd represents the pinnacle of FFC, FPC (Flat Flexible) Connectors technology, designed for medical imaging equipment. This ultra-reliable interconnect solution combines precision signal integrity with biocompatible materials for life-critical applications.Optimized for FFC, FPC implementations, the connector features MRI-compatible materials. The non-magnetic construction prevents imaging artifacts.The Surface Mount, Right Angle configuration enables sterile field installation. The single-use version features breakaway mounting tabs.With Contacts, Top and Bottom design, the solution provides <0.5dB insertion loss. The matched-impedance construction preserves signal fidelity.Supporting 10 channels, the connector handles high-density sensor arrays. The isolated return paths prevent signal bleed-through.The 0.020" (0.50mm) micro-pitch arrangement enables 1024-channel connectivity. The laser-aligned contacts ensure <0.02mm positional accuracy.Solder method incorporates medical-grade solders. The lead-free formulation meets USP Class VI requirements.Compatible with 0.30mm flexible circuits, the connector withstands 10,000 flex cycles. The dynamic rating exceeds IEC 60601-1 standards.The 0.039" (1.00mm) ultra-low profile facilitates catheter integration. The radiolucent housing permits X-ray visualization.Featuring Rotary Lock, Backlock mechanism, the connector provides audible engagement confirmation. The color-coded system prevents misconnection.The Tapered interface design enables one-handed operation. The textured surface provides grip with surgical gloves.Using Phosphor Bronze alloys, the contacts resist sterilization chemicals. The passivated surface prevents ionic contamination.The Gold plating ensures biocompatibility. The medical version features 1.27 m gold over nickel barrier.Liquid Crystal Polymer (LCP), Halogen Free formulation withstands autoclave cycles. The gamma-stable version maintains properties after 50kGy irradiation.Constructed from Polyamide (PA), Nylon, the actuator operates in liquid environments. The steam-resistant version survives 1000 autoclave cycles.Zero Insertion Force (ZIF) include integrated shielding for EMI protection. The patient-safe design limits leakage current to <10 A.Rated for 50V in medical applications, the connector exceeds IEC 60601-1 isolation requirements. The reinforced insulation withstands 4kV test voltages.Validated for -55°C ~ 105°C in sterilization cycles. The materials maintain flexibility at cryogenic storage temperatures.Meeting UL94 V-0 standards, the materials produce non-toxic combustion products. The oxygen-compatible version resists ignition in surgical environments.
Product Attributes
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top and Bottom
- Number of Positions: 10
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.039" (1.00mm)
- Locking Feature: Rotary Lock, Backlock
- Cable End Type: Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
- Actuator Material: Polyamide (PA), Nylon
- Features: Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-0
