FTS-108-01-FM-D-P
Samtec Inc.
FTS-108-01-FM-D-P
Samtec Inc.

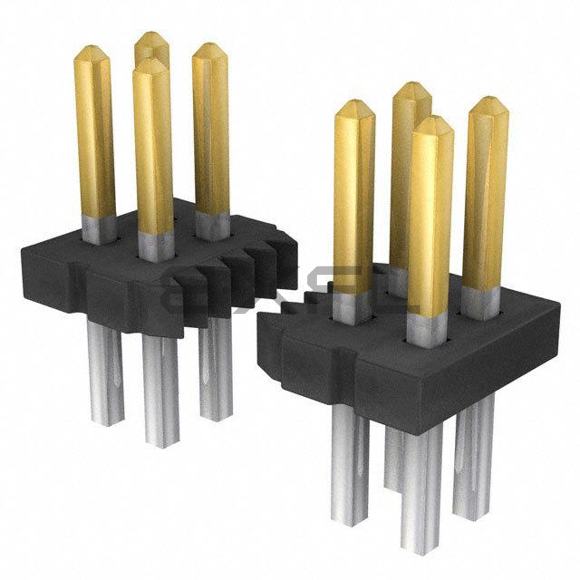

CONN HEADER VERT 16POS 1.27MM
Reference Price (USD)
1+
$4.02000
500+
$3.9798
1000+
$3.9396
1500+
$3.8994
2000+
$3.8592
2500+
$3.819
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
FTS-108-01-FM-D-P
$4.02
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.244" (6.20mm)
- Insulation Height: 0.034" (0.86mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
