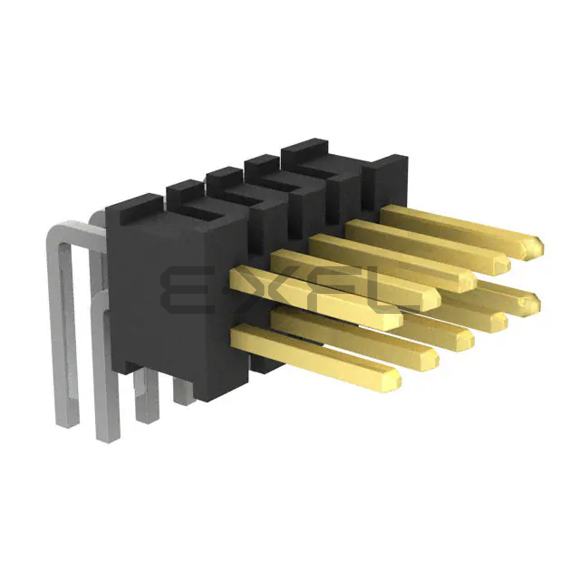

FTSH-105-01-LM-D-RA
Samtec Inc.
FTSH-105-01-LM-D-RA
Samtec Inc.
CONN HEADER R/A 10POS 1.27MM
Reference Price (USD)
1+
$2.78000
500+
$2.7522
1000+
$2.7244
1500+
$2.6966
2000+
$2.6688
2500+
$2.641
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
FTSH-105-01-LM-D-RA
$2.78
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.135" (3.43mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
