FTSH-113-01-LM-D-K
Samtec Inc.
FTSH-113-01-LM-D-K
Samtec Inc.

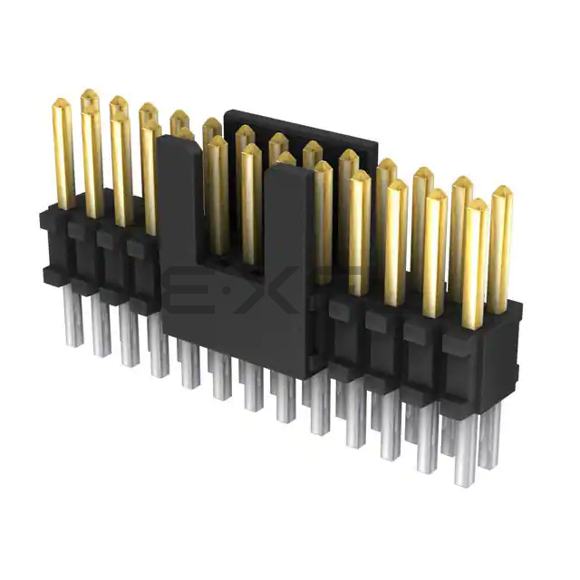

CONN HEADER VERT 26POS 1.27MM
Reference Price (USD)
1+
$8.09000
500+
$8.0091
1000+
$7.9282
1500+
$7.8473
2000+
$7.7664
2500+
$7.6855
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
FTSH-113-01-LM-D-K
$8.09
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.309" (7.86mm)
- Insulation Height: 0.099" (2.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Keying Shroud
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
