G125-MV12005M3P
Harwin Inc.
G125-MV12005M3P
Harwin Inc.

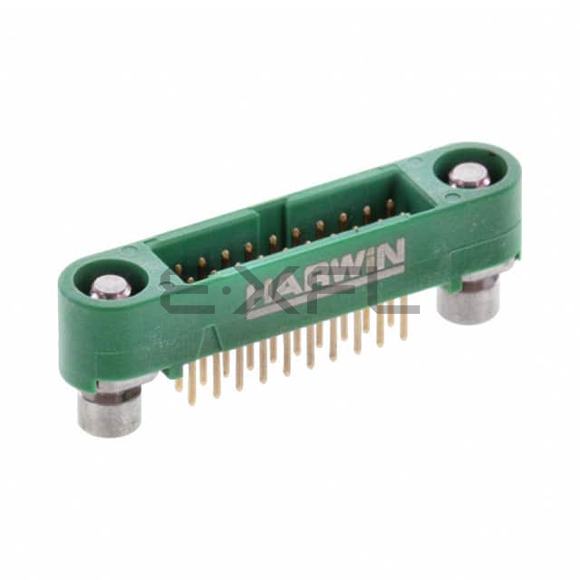

CONN HEADER VERT 20POS 1.25MM
Reference Price (USD)
1+
$12.37592
500+
$12.2521608
1000+
$12.1284016
1500+
$12.0046424
2000+
$11.8808832
2500+
$11.757124
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
G125-MV12005M3P
$12.38
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.049" (1.25mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Screw Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.193" (4.90mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features: Mating Flange, Mounting Flange, Pick and Place
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): 2A
- Voltage Rating: 450V
