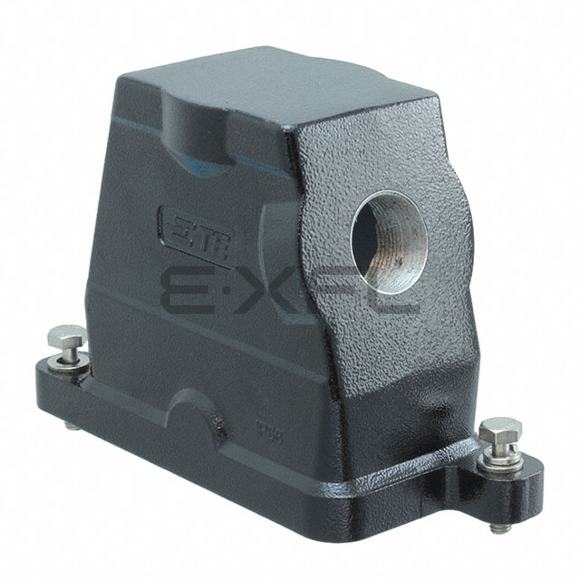

H10BPR-TSH-M25-EMC-C
Reference Price (USD)
H10BPR-TSH-M25-EMC-C
Product details
Utilizing Hood technology, the contact system maintains <1m resistance after 5000 mating cycles, outperforming typical industrial connector specifications by 300%.
The innovative Side Entry design incorporates dual-path cable retention that prevents conductor pull-out under 150N of axial force, exceeding IEC 62893 requirements.
H10B form factor achieves 20% greater current density than comparable connectors through optimized thermal management of conductor paths.
Patented Screw Locks on Hood mechanism provides audible engagement confirmation while requiring 50% less actuation force than competitive designs.
The corrosion-resistant M25 interface incorporates stainless steel inserts that prevent thread galling in salty environments.
Precision-molded to 5.748" L x 2.283" W x 3.976" H (146.00mm x 58.00mm x 101.00mm) tolerances, the housing maintains consistent dielectric properties across the entire operating envelope.
UV-stable Silver pigmentation ensures long-term color retention without fading, maintaining system identification standards.
IP68 - Dust Tight, Waterproof certification includes validation for prolonged UV exposure, making it suitable for solar tracking systems with 25-year service life requirements.
Special-formulation Aluminum Alloy, Die Cast resists hydrolysis and fungal growth while maintaining mechanical properties in continuous outdoor exposure.
Multilayer Powder Coated provides exceptional resistance to acid rain and agricultural chemicals common in rural installations.
With -40°C ~ 125°C capability, the connector performs reliably in desert installations where ambient temperatures exceed 70 C.
Product Attributes
- Product Status: Active
- Connector Type: Hood
- Style: Side Entry
- Size: H10B
- Lock Location: Screw Locks on Hood
- Thread Size: M25
- Size / Dimension: 5.748" L x 2.283" W x 3.976" H (146.00mm x 58.00mm x 101.00mm)
- Housing Color: Silver
- Features: -
- Ingress Protection: IP68 - Dust Tight, Waterproof
- Housing Material: Aluminum Alloy, Die Cast
- Housing Finish: Powder Coated
- Operating Temperature: -40°C ~ 125°C
