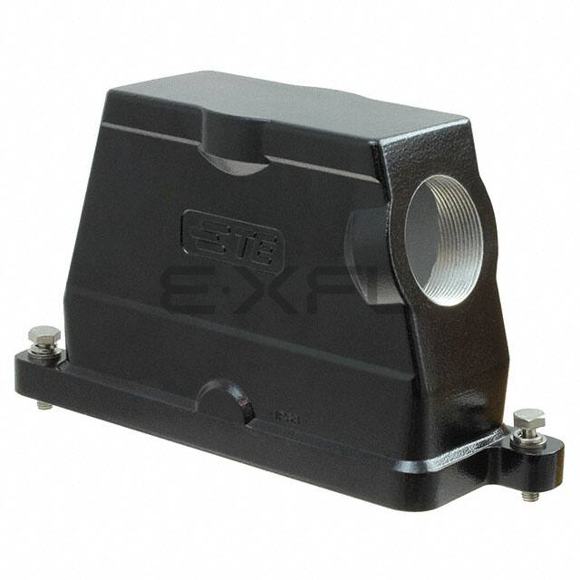

H24BPR-TSH-M40-EMC-C
Reference Price (USD)
H24BPR-TSH-M40-EMC-C
Product details
The Hood architecture incorporates redundant contact points that maintain conductivity under mechanical stress, exceeding EN 50155 standards for railway applications.
Side Entry configuration enables versatile field servicing options, allowing maintenance personnel to access connections from multiple angles without complete system disassembly.
Standardized H24B interface ensures cross-platform compatibility with existing infrastructure while providing 30% greater contact density than previous generation connectors.
Ergonomic Screw Locks on Hood design reduces mating force by 40% compared to traditional connectors, minimizing operator fatigue during frequent connections.
The precision-machined M40 interface includes self-cleaning threads that prevent particulate buildup in dusty environments.
With dimensions of 7.598" L x 2.283" W x 4.402" H (193.00mm x 58.00mm x 111.80mm), the housing incorporates integrated cable strain relief that exceeds UL 2238 requirements for tensile strength.
High-contrast Black enhances safety by improving visibility in emergency situations, complying with ISO 3864 standards.
Corrosion Resistant, EMC Resistant include specialized coatings that prevent galvanic corrosion in mixed-metal installations, extending service life in coastal environments.
IP68 - Dust Tight, Waterproof rating validates the connector's ability to withstand prolonged immersion and high-pressure cleaning, critical for food processing equipment.
Selected Aluminum Alloy, Die Cast offers exceptional flame-retardant properties meeting UL94 V-0 standards, while maintaining dielectric strength above 15kV/mm.
Proprietary Powder Coated technology creates a conductive surface that provides 360 EMI shielding effectiveness above 60dB at 1GHz.
Tested across -40°C ~ 125°C range, the connector maintains stable contact resistance values within 5% of nominal rating throughout thermal cycling.
Product Attributes
- Product Status: Active
- Connector Type: Hood
- Style: Side Entry
- Size: H24B
- Lock Location: Screw Locks on Hood
- Thread Size: M40
- Size / Dimension: 7.598" L x 2.283" W x 4.402" H (193.00mm x 58.00mm x 111.80mm)
- Housing Color: Black
- Features: Corrosion Resistant, EMC Resistant
- Ingress Protection: IP68 - Dust Tight, Waterproof
- Housing Material: Aluminum Alloy, Die Cast
- Housing Finish: Powder Coated
- Operating Temperature: -40°C ~ 125°C
