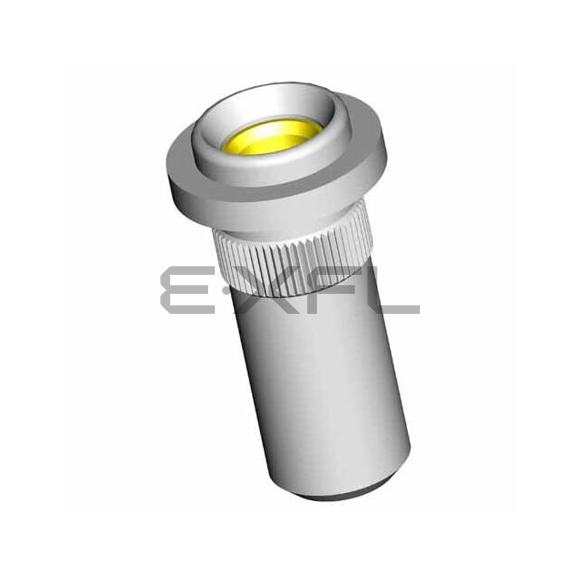

H3167-05
Harwin Inc.
H3167-05
Harwin Inc.
CONN PIN RCPT .035-.041 KNURL
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
H3167-05
$0.00
Product details
The H3167-05 from Harwin Inc. delivers military-grade performance in Terminals - PC Pin Receptacles, Socket Connectors, developed for mission-critical defense systems. This connector meets stringent MIL-STD-202G specifications for shock and vibration while maintaining signal integrity in electromagnetic hostile environments. The H3167-05 is ideally suited for radar systems, avionics, and secure communications equipment.Military-spec No Tail configurations support both conformal coated and hermetic sealing applications.Robust Press-Fit, Knurled methodology ensures connection integrity under 50G mechanical shock loads.The 0.236" (6.00mm) form factor complies with military packaging density requirements for portable systems.Precision 0.035" ~ 0.041" (0.89mm ~ 1.05mm) acceptance range accommodates both standard and ruggedized pins.0.086" ~ 0.088" (2.18mm ~ 2.24mm) mounting pattern resists board flexure in armored vehicle applications.The 0.125" (3.18mm) flange provides strain relief for cable harness connections in field equipment.Deep 0.183" (4.65mm) design prevents contact separation during explosive decompression events.Specialized Beryllium Copper alloy maintains spring properties at extreme temperature ranges.High-reliability Gold plating exceeds MIL-G-45204 corrosion resistance standards.Precision 5.90µin (0.150µm) application ensures consistent RF performance up to 6GHz.
Product Attributes
- Product Status: Active
- Tail Type: No Tail
- Termination: Press-Fit, Knurled
- Length - Overall: 0.236" (6.00mm)
- Accepts Pin Diameter: 0.035" ~ 0.041" (0.89mm ~ 1.05mm)
- Accepts Square Pin Size: -
- Pin Hole Diameter: -
- Mounting Hole Diameter: 0.086" ~ 0.088" (2.18mm ~ 2.24mm)
- Flange Diameter: 0.125" (3.18mm)
- Tail Diameter: -
- Socket Depth: 0.183" (4.65mm)
- Contact Material: Beryllium Copper
- Contact Finish: Gold
- Contact Finish Thickness: 5.90µin (0.150µm)
