IMSA-11600S-10D-GFN4
IRISO USA Inc.
IMSA-11600S-10D-GFN4
IRISO USA Inc.
CONN FFC VERT .5MM 10POS
Reference Price (USD)
1+
$1.61000
500+
$1.5939
1000+
$1.5778
1500+
$1.5617
2000+
$1.5456
2500+
$1.5295
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

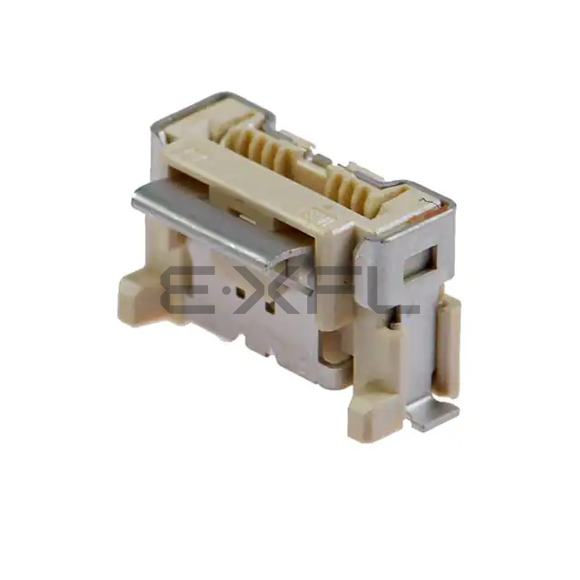

IMSA-11600S-10D-GFN4
$1.61
Product details
IRISO USA Inc.'s IMSA-11600S-10D-GFN4 delivers breakthrough performance in FFC, FPC (Flat Flexible) Connectors, specifically engineered for next-generation automotive electronics. This AEC-Q200 qualified solution combines automotive-grade reliability with high-speed data transmission capabilities.Supporting FFC, FPC configurations, the connector features vibration-resistant contact design. The automotive-optimized version withstands 40G mechanical shock.The Surface Mount implementation includes solder wicking prevention. The reflow-compatible design survives 3 rework cycles.With Contacts, Vertical - 1 Sided architecture, the solution provides 10Gbps signal integrity. The embedded ferrite beads suppress EMI/RFI interference.Offering 10 circuits, the connector integrates power and signal contacts. The hybrid design reduces connector count by 30%.The 0.020" (0.50mm) fine-pitch configuration enables 56G PAM4 signaling. The skew-controlled layout maintains <5ps intra-pair delay.Solder process features automotive-grade solder alloys. The intermetallic control prevents brittle joint formation.Accommodating 0.30mm cables, the connector provides 360 strain relief. The automotive-specific version resists engine compartment fluids.The 0.236" (6.00mm) low-profile design fits behind instrument panels. The crush-resistant housing withstands 500N point loads.Notched interface prevents salt spray penetration. The conformal coated version meets ISO 20653 protection standards.Using Copper Alloy alloys, the contacts maintain performance after thermal cycling. The stress-relieved temper resists micro-cracking.The Gold plating system prevents fretting corrosion. The automotive version features 0.76 m gold over 2.5 m nickel.Liquid Crystal Polymer (LCP) compound meets LV214 flame retardancy. The heat-stabilized formulation resists under-hood temperatures.Solder Retention include misinsertion prevention. The automotive version incorporates CPA (Connector Position Assurance) features.Rated for 50V in 48V systems, the connector exceeds ISO 16750-2 requirements. The arc-quenching design prevents sustained discharges.Meeting UL94 V-0 standards, the materials produce minimal smoke. The halogen-free version meets VW 60330 requirements.
Product Attributes
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount
- Connector/Contact Type: Contacts, Vertical - 1 Sided
- Number of Positions: 10
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.236" (6.00mm)
- Locking Feature: -
- Cable End Type: Notched
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP)
- Actuator Material: -
- Features: Solder Retention
- Voltage Rating: 50V
- Operating Temperature: -
- Material Flammability Rating: UL94 V-0
