IPBT-112-H1-T-D-RA-K
Samtec Inc.
IPBT-112-H1-T-D-RA-K
Samtec Inc.

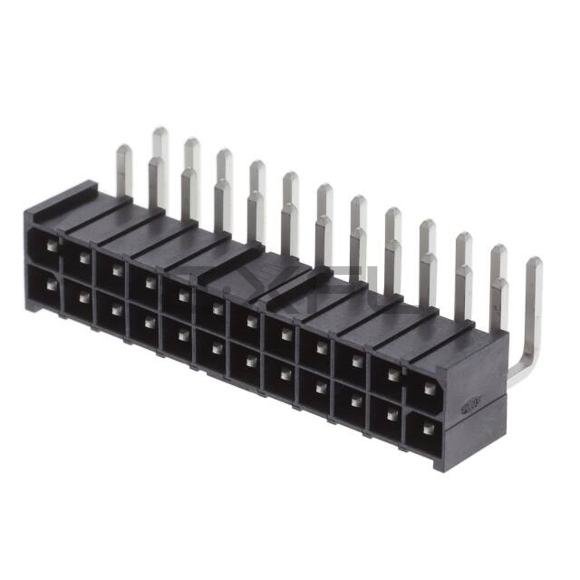

CONN HEADER R/A 24POS 4.20MM
Reference Price (USD)
1+
$8.29000
500+
$8.2071
1000+
$8.1242
1500+
$8.0413
2000+
$7.9584
2500+
$7.8755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
IPBT-112-H1-T-D-RA-K
$8.29
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.260" (6.60mm)
- Contact Length - Post: 0.147" (3.73mm)
- Overall Contact Length: -
- Insulation Height: 0.424" (10.77mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 400VAC, 565VDC
