IPL1-104-01-S-S-RA-K
Samtec Inc.
IPL1-104-01-S-S-RA-K
Samtec Inc.

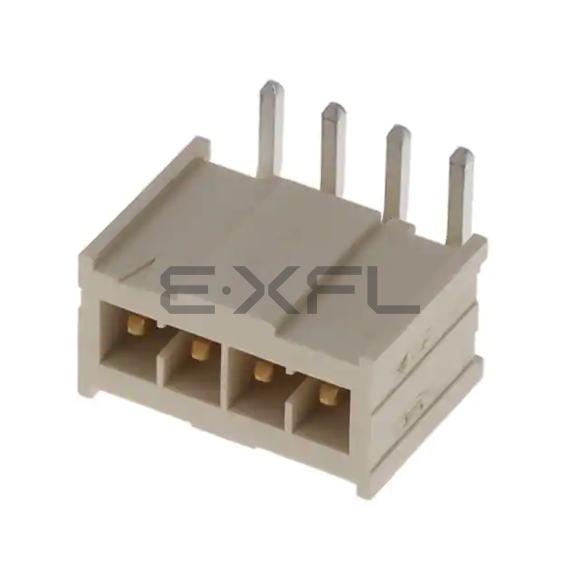

CONN HEADER R/A 4POS 2.54MM
Reference Price (USD)
1+
$6.45000
500+
$6.3855
1000+
$6.321
1500+
$6.2565
2000+
$6.192
2500+
$6.1275
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
IPL1-104-01-S-S-RA-K
$6.45
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.215" (5.46mm)
- Contact Length - Post: 0.085" (2.16mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 675VAC, 954VDC
