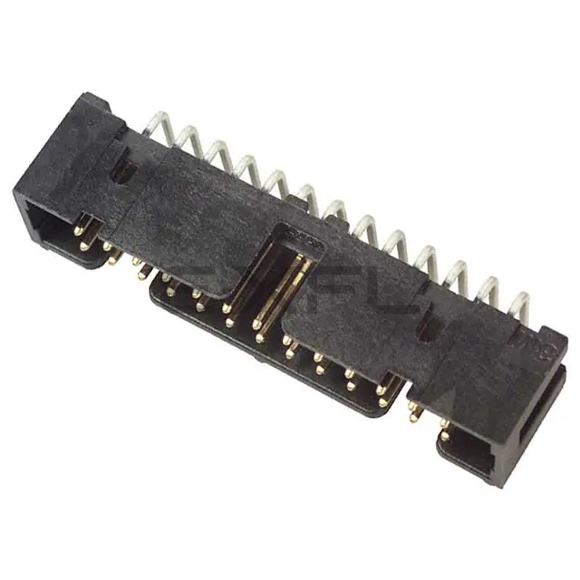

N2526-5002-RB
3M
N2526-5002-RB
3M
CONN HEADER R/A 26POS 2.54MM
Reference Price (USD)
1+
$3.28000
500+
$3.2472
1000+
$3.2144
1500+
$3.1816
2000+
$3.1488
2500+
$3.116
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
N2526-5002-RB
$3.28
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.243" (6.17mm)
- Contact Length - Post: 0.112" (2.84mm)
- Overall Contact Length: -
- Insulation Height: 0.338" (8.59mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.75A
- Voltage Rating: -
