PBC03DFAN
Sullins Connector Solutions
PBC03DFAN
Sullins Connector Solutions

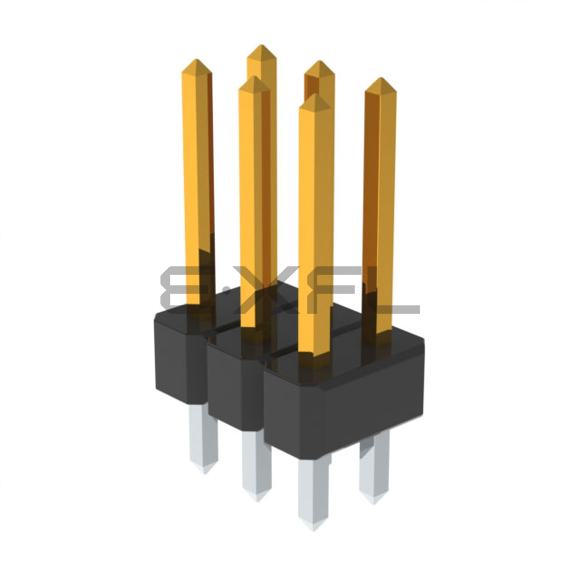

CONN HEADER VERT 6POS 2.54MM
Reference Price (USD)
1+
$0.47000
500+
$0.4653
1000+
$0.4606
1500+
$0.4559
2000+
$0.4512
2500+
$0.4465
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
PBC03DFAN
$0.47
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.538" (13.67mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
