PEC01DAHN
Sullins Connector Solutions
PEC01DAHN
Sullins Connector Solutions

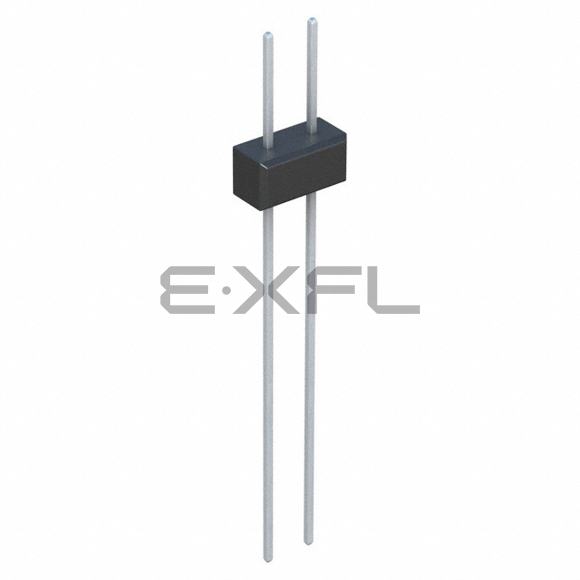

CONN HEADER VERT 2POS
Reference Price (USD)
1+
$0.40000
500+
$0.396
1000+
$0.392
1500+
$0.388
2000+
$0.384
2500+
$0.38
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
PEC01DAHN
$0.40
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 2
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.820" (20.83mm)
- Overall Contact Length: 1.150" (29.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
