PEC30DAGN
Sullins Connector Solutions
PEC30DAGN
Sullins Connector Solutions

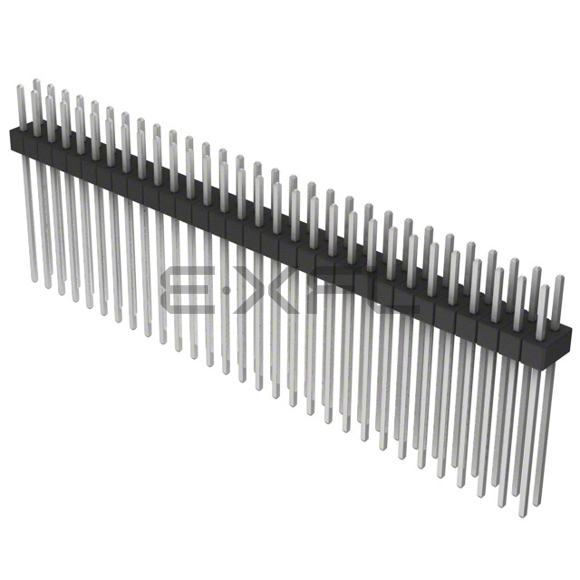

CONN HEADER VERT 60POS 2.54MM
Reference Price (USD)
1+
$7.27000
500+
$7.1973
1000+
$7.1246
1500+
$7.0519
2000+
$6.9792
2500+
$6.9065
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
PEC30DAGN
$7.27
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 60
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.720" (18.29mm)
- Overall Contact Length: 1.050" (26.67mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
