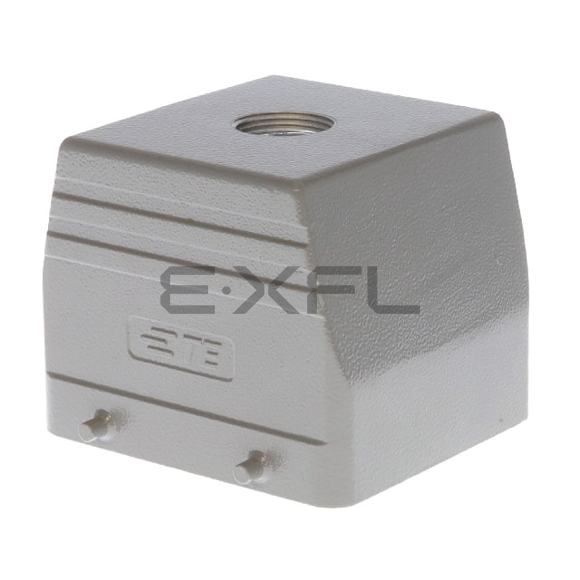

T1220320125-000
TE Connectivity AMP Connectors
T1220320125-000
TE Connectivity AMP Connectors
H32B-TG-M25
Reference Price (USD)
1+
$20.07000
500+
$19.8693
1000+
$19.6686
1500+
$19.4679
2000+
$19.2672
2500+
$19.0665
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
T1220320125-000
$20.07
Product details
Designed for next-generation electric vehicles, the T1220320125-000 from TE Connectivity AMP Connectors delivers robust performance in Heavy Duty Connectors - Housings, Hoods, Bases for high-voltage battery systems. This automotive-grade solution meets stringent ISO 6469 and LV214 standards for electrified powertrains.<p>The Hood architecture incorporates arc-flash prevention technology that safely breaks 800V DC circuits under load conditions.</p><p>With Top Entry configuration, the HVIL (High Voltage Interlock Loop) system ensures proper sequencing during connection and disconnection.</p><p>Optimized H32B dimensions accommodate 600A continuous current while providing 15mm creepage distance for 1000V applications.</p><p>The safety-interlocked Locking Clip (2) on Base Bottom mechanism prevents access to live contacts during maintenance operations.</p><p>The M25 interface incorporates corrosion-resistant plating that withstands 1000 hours of salt spray testing.</p><p>Engineered to 3.701" L x 3.248" W x 2.992" H (94.00mm x 82.50mm x 76.00mm) specifications, the connector withstands 50G mechanical shock per ISO 16750-3.</p><p>High-visibility Gray provides clear identification of high-voltage components per SAE J2340.</p><p>IP65 - Dust Tight, Water Resistant rating ensures reliable operation when exposed to road spray and pressure washing in underbody locations.</p><p>Halogen-free Aluminum Alloy, Die Cast meets UL94 V-0 flammability requirements while minimizing toxic fume emission.</p><p>Advanced Powder Coated provides UV stability for exterior-mounted charge ports without color fading.</p><p>Rated for -40°C ~ 125°C range, the connector maintains stable contact resistance during extreme fast-charging cycles.</p>
Product Attributes
- Product Status: Active
- Connector Type: Hood
- Style: Top Entry
- Size: H32B
- Lock Location: Locking Clip (2) on Base Bottom
- Thread Size: M25
- Size / Dimension: 3.701" L x 3.248" W x 2.992" H (94.00mm x 82.50mm x 76.00mm)
- Housing Color: Gray
- Features: -
- Ingress Protection: IP65 - Dust Tight, Water Resistant
- Housing Material: Aluminum Alloy, Die Cast
- Housing Finish: Powder Coated
- Operating Temperature: -40°C ~ 125°C
