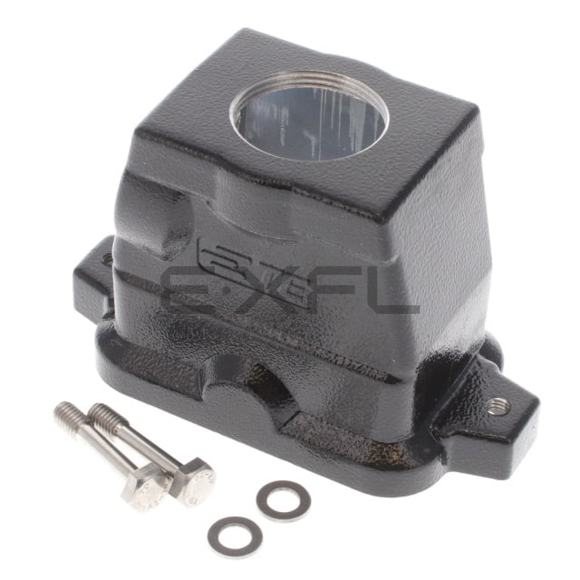

T1902100232-009
Reference Price (USD)
T1902100232-009
Product details
The Hood configuration features hermetic sealing technology that maintains <1x10^-9 atm-cc/sec helium leak rate, suitable for vacuum chamber applications.
With Side and Top Entry architecture, the connector supports blind-mate capabilities with 2mm alignment tolerance, critical for rapid field deployment scenarios.
Despite its compact H10B dimensions, the connector withstands 50G shock loads and 20G vibration per MIL-STD-202 standards.
The fail-safe Screw Locks on Hood design includes secondary retention that prevents accidental release under explosive decompression conditions.
The M32 interface incorporates anti-FOD features that prevent loose debris generation during repeated mating cycles.
Precision-machined to 4.331" L x 2.094" W x 2.756" H (110.00mm x 53.20mm x 70.00mm) specifications, the connector maintains impedance stability within 2% across all mated pairs.
Low-observable Black meets strict reflectivity requirements for stealth applications while maintaining visibility for maintenance.
Corrosion Resistant, EMC Resistant include rad-hard materials suitable for satellite systems exposed to >100kRad total ionizing dose.
IP68 - Dust Tight, Waterproof performance includes validation for salt fog exposure per MIL-STD-810 Method 509, ensuring operation in naval environments.
High-strength Aluminum Alloy, Die Cast composition provides RFI/EMI shielding effectiveness exceeding 90dB up to 18GHz frequency range.
Advanced Powder Coated provides tribological properties that reduce mating force while preventing cold welding in space applications.
Qualified for -40°C ~ 125°C extremes, the connector maintains signal integrity during rapid thermal transients up to 10 C/minute.
Product Attributes
- Product Status: Active
- Connector Type: Hood
- Style: Side and Top Entry
- Size: H10B
- Lock Location: Screw Locks on Hood
- Thread Size: M32
- Size / Dimension: 4.331" L x 2.094" W x 2.756" H (110.00mm x 53.20mm x 70.00mm)
- Housing Color: Black
- Features: Corrosion Resistant, EMC Resistant
- Ingress Protection: IP68 - Dust Tight, Waterproof
- Housing Material: Aluminum Alloy, Die Cast
- Housing Finish: Powder Coated
- Operating Temperature: -40°C ~ 125°C
