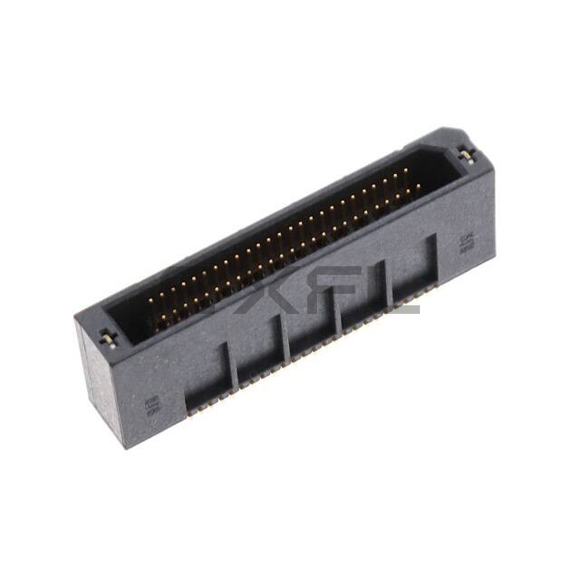

TEM-125-02-07.0-H-D-WT
Samtec Inc.
TEM-125-02-07.0-H-D-WT
Samtec Inc.
.8MM TIGER EYE MICRO TERMINAL
Reference Price (USD)
1+
$17.24000
500+
$17.0676
1000+
$16.8952
1500+
$16.7228
2000+
$16.5504
2500+
$16.378
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TEM-125-02-07.0-H-D-WT
$17.24
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.031" (0.80mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.063" (1.60mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.378" (9.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 2.9A per Contact
- Voltage Rating: -
