TFM-103-02-L-D-WT-K-TR
Samtec Inc.
TFM-103-02-L-D-WT-K-TR
Samtec Inc.

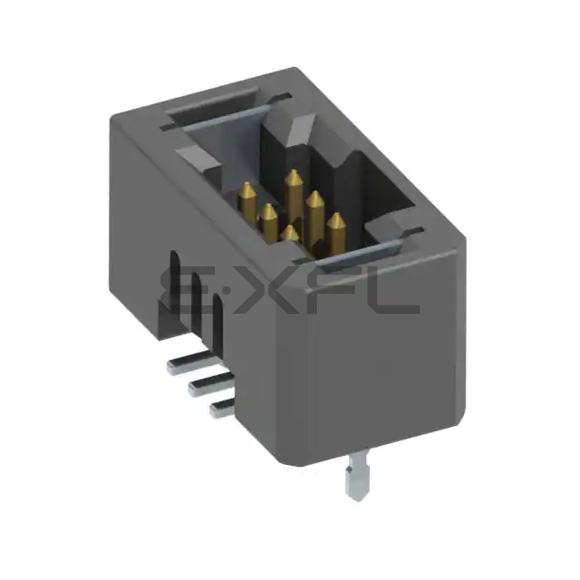

CONN HEADER SMD 6POS 1.27MM
Reference Price (USD)
1+
$3.03188
500+
$3.0015612
1000+
$2.9712424
1500+
$2.9409236
2000+
$2.9106048
2500+
$2.880286
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TFM-103-02-L-D-WT-K-TR
$3.03
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.131" (3.33mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.9A per Contact
- Voltage Rating: 275VAC
