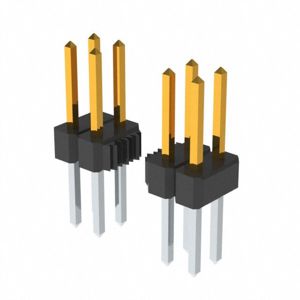

TMMH-109-06-G-D
Samtec Inc.
TMMH-109-06-G-D
Samtec Inc.
2MM LOW PROFILE STRIPS
Reference Price (USD)
1+
$3.96000
500+
$3.9204
1000+
$3.8808
1500+
$3.8412
2000+
$3.8016
2500+
$3.762
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TMMH-109-06-G-D
$3.96
Product details
Product Attributes
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.126" (3.20mm)
- Contact Length - Post: 0.139" (3.53mm)
- Overall Contact Length: 0.344" (8.74mm)
- Insulation Height: 0.079" (2.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
