11126001403
Reference Price (USD)
11126001403

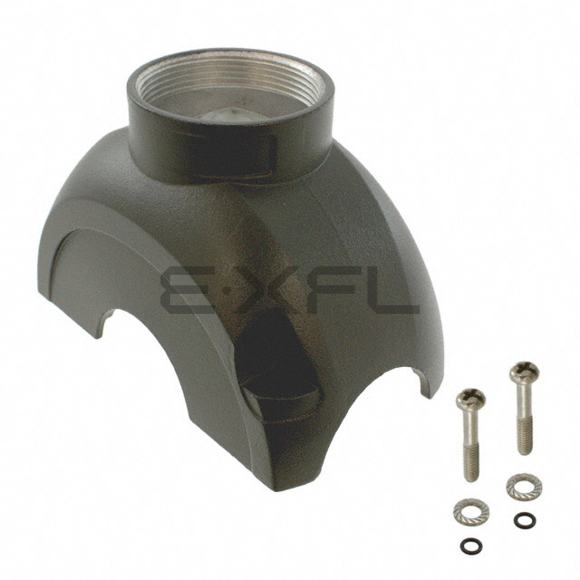

Product details
The Hood - Shell configuration features hermetic sealing technology that maintains <1x10^-9 atm-cc/sec helium leak rate, suitable for vacuum chamber applications.
With Top Entry architecture, the connector supports blind-mate capabilities with 2mm alignment tolerance, critical for rapid field deployment scenarios.
The fail-safe Push Button Snap Lock on Hood Carrier design includes secondary retention that prevents accidental release under explosive decompression conditions.
The M40 interface incorporates anti-FOD features that prevent loose debris generation during repeated mating cycles.
Precision-machined to 3.972" L x 2.205" W x 2.673" H (100.89mm x 56.00mm x 67.90mm) specifications, the connector maintains impedance stability within 2% across all mated pairs.
Low-observable Black meets strict reflectivity requirements for stealth applications while maintaining visibility for maintenance.
IP65/IP67 - Dust Tight, Water Resistant, Waterproof performance includes validation for salt fog exposure per MIL-STD-810 Method 509, ensuring operation in naval environments.
High-strength Aluminum, Die Cast composition provides RFI/EMI shielding effectiveness exceeding 90dB up to 18GHz frequency range.
Advanced Epoxy Powder Paint provides tribological properties that reduce mating force while preventing cold welding in space applications.
Qualified for -40°C ~ 125°C extremes, the connector maintains signal integrity during rapid thermal transients up to 10 C/minute.
Product Attributes
- Product Status: Active
- Connector Type: Hood - Shell
- Style: Top Entry
- Size: -
- Lock Location: Push Button Snap Lock on Hood Carrier
- Thread Size: M40
- Size / Dimension: 3.972" L x 2.205" W x 2.673" H (100.89mm x 56.00mm x 67.90mm)
- Housing Color: Black
- Features: -
- Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof
- Housing Material: Aluminum, Die Cast
- Housing Finish: Epoxy Powder Paint
- Operating Temperature: -40°C ~ 125°C
