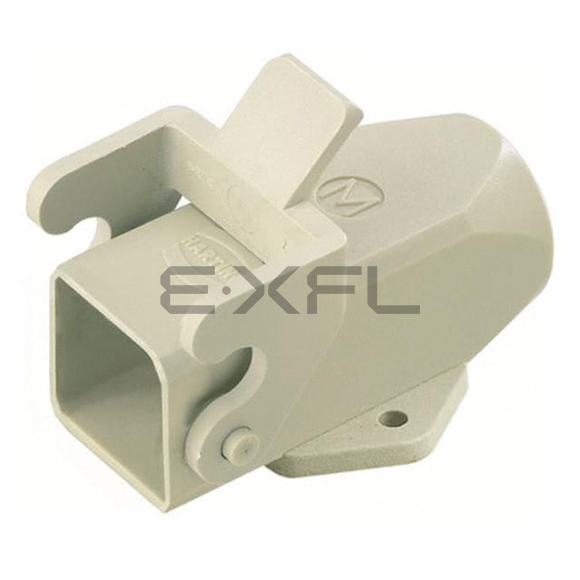

19200030220
Reference Price (USD)
19200030220
Product details
Utilizing Base - Panel Mount 90° technology, the contact system maintains <1m resistance after 5000 mating cycles, outperforming typical industrial connector specifications by 300%.
The innovative Side Entry design incorporates dual-path cable retention that prevents conductor pull-out under 150N of axial force, exceeding IEC 62893 requirements.
3A form factor achieves 20% greater current density than comparable connectors through optimized thermal management of conductor paths.
Patented Locking Clip (1) on Base Bottom mechanism provides audible engagement confirmation while requiring 50% less actuation force than competitive designs.
The corrosion-resistant M20 interface incorporates stainless steel inserts that prevent thread galling in salty environments.
Precision-molded to 1.102" L x 1.575" W x 1.055" H (28.00mm x 40.00mm x 26.80mm) tolerances, the housing maintains consistent dielectric properties across the entire operating envelope.
UV-stable Gray pigmentation ensures long-term color retention without fading, maintaining system identification standards.
IP44 certification includes validation for prolonged UV exposure, making it suitable for solar tracking systems with 25-year service life requirements.
Special-formulation Polyamide (PA), Nylon resists hydrolysis and fungal growth while maintaining mechanical properties in continuous outdoor exposure.
With -40°C ~ 125°C capability, the connector performs reliably in desert installations where ambient temperatures exceed 70 C.
Product Attributes
- Product Status: Active
- Connector Type: Base - Panel Mount 90°
- Style: Side Entry
- Size: 3A
- Lock Location: Locking Clip (1) on Base Bottom
- Thread Size: M20
- Size / Dimension: 1.102" L x 1.575" W x 1.055" H (28.00mm x 40.00mm x 26.80mm)
- Housing Color: Gray
- Features: -
- Ingress Protection: IP44
- Housing Material: Polyamide (PA), Nylon
- Housing Finish: -
- Operating Temperature: -40°C ~ 125°C
