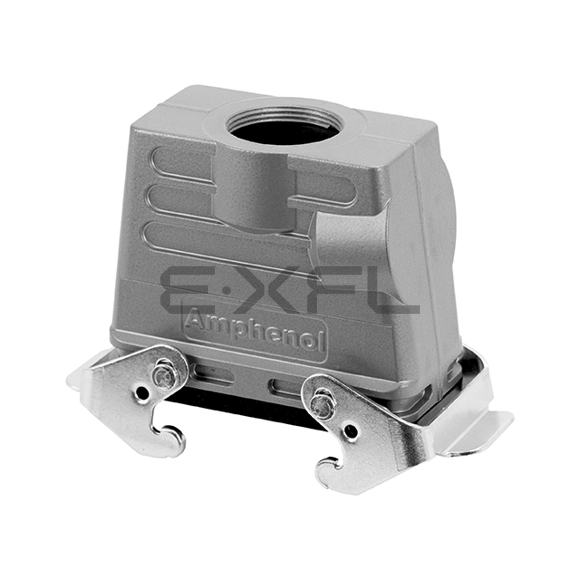

C146 21R016 802 8
Reference Price (USD)
C146 21R016 802 8
Product details
The Hood - Coupling configuration features hermetic sealing technology that maintains <1x10^-9 atm-cc/sec helium leak rate, suitable for vacuum chamber applications.
With Bottom Entry architecture, the connector supports blind-mate capabilities with 2mm alignment tolerance, critical for rapid field deployment scenarios.
Despite its compact E16 dimensions, the connector withstands 50G shock loads and 20G vibration per MIL-STD-202 standards.
The fail-safe Locking Clip (2) on Hood Top design includes secondary retention that prevents accidental release under explosive decompression conditions.
The M32 interface incorporates anti-FOD features that prevent loose debris generation during repeated mating cycles.
Precision-machined to 3.681" L x 1.693" W x 2.992" H (93.50mm x 43.00mm x 76.00mm) specifications, the connector maintains impedance stability within 2% across all mated pairs.
Cable to Cable include rad-hard materials suitable for satellite systems exposed to >100kRad total ionizing dose.
IP65 - Dust Tight, Water Resistant performance includes validation for salt fog exposure per MIL-STD-810 Method 509, ensuring operation in naval environments.
High-strength Aluminum, Die Cast composition provides RFI/EMI shielding effectiveness exceeding 90dB up to 18GHz frequency range.
Qualified for -40°C ~ 100°C extremes, the connector maintains signal integrity during rapid thermal transients up to 10 C/minute.
Product Attributes
- Product Status: Active
- Connector Type: Hood - Coupling
- Style: Bottom Entry
- Size: E16
- Lock Location: Locking Clip (2) on Hood Top
- Thread Size: M32
- Size / Dimension: 3.681" L x 1.693" W x 2.992" H (93.50mm x 43.00mm x 76.00mm)
- Housing Color: -
- Features: Cable to Cable
- Ingress Protection: IP65 - Dust Tight, Water Resistant
- Housing Material: Aluminum, Die Cast
- Housing Finish: -
- Operating Temperature: -40°C ~ 100°C
